Thursday, August 26, 2021

VMworld 2021 - Sessions to watch


This year is going to be the second one in a row when I don't get to do my favorite autumn activity: go to VMworld in Barcelona. But I do get to do part of it - attend the virtual VMworld 2021. And to make it as close as possible to the real experience, I will most probably add some red Spanish wine and jamon on the side.

As for the sessions I am looking forward to attend, I will leave here a few of my choices:

VMware vSAN – Dynamic Volumes for Traditional and Modern Applications [MCL1084]

I've been involved recently in projects with Tanzu and vSAN and this session with Duncan Epping and Cormac Hogan is the place to go to see how vSAN continues to evolve, to learn about new features, integration with with Tanzu and hear some of the best practices.

The Future of VM Provisioning – Enabling VM Lifecycle Through Kubernetes [APP1564]

A session about what I think is a one of the game changers introduced by VMware this year: include VM-based workloads in modern applications using Kubernetes APIs to deploy, configure and manage them. I've been using working with VM service since its official release in May and also wrote small blog post earlier this month.

What's New in vSphere [APP1205]

This is one the sessions I never missed. vSphere is still one of the fundamental technologies for all other transformations. I am interested in finding out what are latest capabilities, the customer challenges and real-world customer successes.

Automation Showdown: Imperative vs Declarative [CODE2786]

There is no way to miss Luc Dekens and Kyle Rudy take on the hot topic of imperative versus declarative infrastructure and understanding when and how you can and should use each of it and see practical examples of it.

Achieving Happiness: The Quest for Something New [IC1484]

I had the honor to meet Amanda Blevins at VMUG Leaders Summit right before the world decided to  close. Her presentation wowed the crowd and it was one of the highest rated. So this is something that shouldn't be missed, especially since the pandemic has been around for 18 months and we need to achieve some happiness.

There are hundreds of sessions and the touched areas are so diverse that you can find your picj regardless of your interests in AI, application modernization, Kubernetes, security, network, personal development or plain old virtualization. See you at VMworld 2021

Friday, August 20, 2021

vSphere with Tanzu - Create custom VM template for VM Operator

 We've seen in the previous post how to enable and use VM Operator. We've also noticed that currently there are only 2 VM images that are supported to be deployed using VM Operator. What if we need to create our own image?

There is a way, but the way is not supported by VMware. So once going this path, you have to understand the risks.

What is so special about the VM image deployed using VM Operator? It is using cloud-init and OVF environment variables to initialize the VM.

Let's start with a new Linux VM template. We will install VMware Tools. Then we need to install cloud-init. Once cloud init is installed update the configuration as following:

  • in  /etc/cloud/cloud.cfg check the following value: disable_vmware_customization: true
    • setting it to true invokes traditional Guest Operating System Customization script based workflow (GOSC); in case it is set to false, cloud-init customization will be used.
  • create a new file /etc/cloud/cloud.cfg.d/99_vmservice.cfg and add the following line to it network: {config: disabled};
    • this will actually prevent cloud-init to configure the network; you guessed, VMware Tools will be used to configure the network
Before exporting the VM as OVF template, run cloud-init to simulate a clean instance installation. It should be run on subsequent template updates too.

Next we'll customize the OVF file itself. We need to enable OVF environment variables to be used to transport data to cloud-init. For this to work, I just copied the configuration from VMware CentOS VM service image ovf file and updated several sections:

In <VirtualSystem ovf:id="vm">, add the following ovf properties. Please note that you could/should change the labels and descriptions to match your template

<ProductSection ovf:required="false">
  <Info>Cloud-Init customization</Info>
  <Product>Linux distribution for VMware VM Service</Product>
  <Property ovf:key="instance-id" ovf:type="string" ovf:userConfigurable="true" ovf:value="id-ovf">
      <Label>A Unique Instance ID for this instance</Label>
      <Description>Specifies the instance id.  This is required and used to determine if the machine should take "first boot" actions</Description>
  </Property>
  <Property ovf:key="hostname" ovf:type="string" ovf:userConfigurable="true" ovf:value="centosguest">
      <Description>Specifies the hostname for the appliance</Description>
  </Property>
  <Property ovf:key="seedfrom" ovf:type="string" ovf:userConfigurable="true">
      <Label>Url to seed instance data from</Label>
      <Description>This field is optional, but indicates that the instance should 'seed' user-data and meta-data from the given url.  If set to 'http://tinyurl.com/sm-' is given, meta-data will be pulled from http://tinyurl.com/sm-meta-data and user-data from http://tinyurl.com/sm-user-data.  Leave this empty if you do not want to seed from a url.</Description>
  </Property>
  <Property ovf:key="public-keys" ovf:type="string" ovf:userConfigurable="true" ovf:value="">
      <Label>ssh public keys</Label>
      <Description>This field is optional, but indicates that the instance should populate the default user's 'authorized_keys' with this value</Description>
  </Property>
  <Property ovf:key="user-data" ovf:type="string" ovf:userConfigurable="true" ovf:value="">
      <Label>Encoded user-data</Label>
      <Description>In order to fit into a xml attribute, this value is base64 encoded . It will be decoded, and then processed normally as user-data.</Description>
  </Property>
  <Property ovf:key="password" ovf:type="string" ovf:userConfigurable="true" ovf:value="">
      <Label>Default User's password</Label>
      <Description>If set, the default user's password will be set to this value to allow password based login.  The password will be good for only a single login.  If set to the string 'RANDOM' then a random password will be generated, and written to the console.</Description>
  </Property>
</ProductSection>


In <VirtualHardwareSection ovf:transport="iso">, add the following:

<vmw:ExtraConfig ovf:required="false" vmw:key="guestinfo.vmservice.defer-cloud-init" vmw:value="ready"/>

Save the OVF file and export it to the content library. The name must by DNS compliant and must not contain any capital letters.

Lastly, in the YAML manifest file add disable checks done by VM Operator:

metadata:
  name: my-vm-name
  labels:
    app: db-server
  annotations:
    vmoperator.vmware.com/image-supported-check: disable


Tuesday, August 10, 2021

vSphere with Tanzu - VM Operator

VM Operator is an extension to Kubernetes that implements VM management through Kubernetes. It was released officially at end of April 2021 with vCenter Server 7.0 U2a. This is a small feature pushed through a vCenter Server patch that is bringing a huge shift in the paradigm of VM management. It changes the way we are looking at VMs and at the way we are using virtualization. One could argue that Kubernetes already did that. I would say that unifying resource consumption through VMs and pods is actually a huge step forward. VM Operator brings to play not only Infrastructure as Code (IaC), but it also enables GitOps for VMs.

Let's look briefly at the two concepts. IaC represents the capability to define your infrastructure in a human readable language. A lot of tools exist that enable IaC -  Puppet, Chef, Ansible, Terraform and so on. They are complex and powerful tools, some of them used in conjunction with others. All these tools have a particularity: they have their own language - Ruby, Python, HCL. GitOps expands the IaC concept. In this case, Git repository is the only source of truth. Manifests (configuration files that describe the resource to be provisioned) are pushed to a Git repository monitored by a continuous deployment (CD) tool that ensures that changes in the repository are applied in the real world. Kubernetes enables GitOps. Kubernetes manifests are written in YAML. With introduction of VM Operator the two concepts can be used in conjunction. For example you could have a GitOps pipeline that deploys the VMs using Kubernetes manifests and then configuration management tools could actually make sure the VMs are customized to suit  their purpose - deploying an application server, monitoring agents and so on.


In the current post we will only look at the basics of deploying a VM through VM Operator. Once these concepts are clear then you can add other tools such as Git repositories, CD tools, configuration management.

So, what do we need to be able to provision a VM through VM Operator?

We need vCenter Server updated to U2a and a running Supervisor cluster.

At namespace level a storage policies needs to be configured. It is needed for both VM deployment and persistent volumes



We need a content library uploaded with a supported VMware template (we will follow soon with a post on how to create unsupported VMware templates for VM operator). At the time of writing CentOS 8 and Ubuntu images are distributed through VMware Marketplace (https://marketplace.cloud.vmware.com/ search for "VM service Image")


The images are installed with cloud-init and configured to transport user data using OVF environment variables to cloud-init process which in turn customizes the VM operating system.

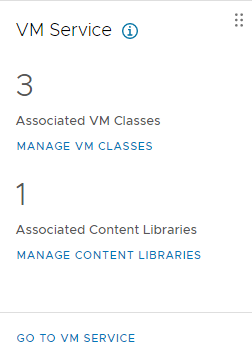

In Workload Management, VM Service allows the configuration of additional VM classes and content libraries. VM classes and content library are assigned to the namespace to be able to provision the VMs.


VM classes selected for a particular namespace:


Content library selected for a particular namespace:


Once or the prerequisites are in place, connect to supervisor cluster, and select the namespace you want to deploy the VM

kubectl vsphere login --verbose 5 --server=https://192.168.2.1 --insecure-skip-tls-verify  -u cloudadmin@my.lab

kubectl config use-context my-app-namespace


Check that the VM images in the content library are available

kubectl get virtualmachineimages


Create the VM manifest file - centos-db-2.yaml

apiVersion: vmoperator.vmware.com/v1alpha1
kind: VirtualMachine
metadata:
 name: centos-db-2
 labels:
  app: my-app-db
spec:
 imageName: centos-stream-8-vmservice-v1alpha1.20210222.8
 className: best-effort-xsmall
 powerState: poweredOn
 storageClass: tanzu-gold
 networkInterfaces:
  - networkType: nsx-t
 vmMetadata:
  configMapName: my-app-db-config
  transport: OvfEnv
---
apiVersion: v1
kind: ConfigMap
metadata:
 name: my-app-db-config
data:
 user-data: |
  I2Nsb3VkL6CiAgICBlbnMxNjA6CiAgICAgIGRoY3A0OiB0cnVlCg==
 hostname: centos-db-2

In the manifest file we've added 2 resources:
- VirtualMachine: where we specify the VM template to use, the VM class. storage policy, network type and also how to send variables to the cloud-init inside the VM (using a config map resource to keep the date in Kubernetes and OVF environment variables to transport it to the VM)
- ConfigMap: contains in our case user data (Base64 encoded user data - this is a SSH key) and the hostname of the VM; Base64 output in this post is trunked

 To create the VM, apply the manifest. Then check its state.
kubectl apply -f centos-db-2.yaml

kubectl get virtualmachine



Once the VM has been provisioned, it has been assigned an IP from the POD CIDR



POD CIDRs are private subnets used for inter-pod communication. To access the VM, it needs an Ingress CIDR IP. This is a routable IP and it is implemented in NSX-T as a VIP on the load balancer. The Egress CIDR is used for communication from VM to outside world and it is implemented as SNAT rule. To define an ingress IP, we need to create a virtual machiner service resource of type load balancer:

Create the manifest file - service-ssh-centos-db-2.yaml

apiVersion: vmoperator.vmware.com/v1alpha1
kind: VirtualMachineService
metadata:
 name: lb-centos-db-2
spec:
 selector:
  app: my-app-db
 type: LoadBalancer
 ports:
  - name: ssh
    port: 22
    protocol: TCP
    targetPort: 22

We are using the selector app: my-app-db to match the VM resource for this service. The service will be assigned an IP from Ingress network and it will forward all requests coming to that IP on SSH port to the VM IP on SSH port.

 To create the service, apply the manifest. Then check its state.
kubectl apply -f service-ssh-centos-db-2.yaml

kubectl get service lb-centos-db-2


The External IP displayed in the above listing is the ingress IP that you can use now to ssh to the VM:
ssh cloud-user@external_ip

Please note the user used to SSH. From it, you can then sudo and gain root privileges.

A VM provisioned via VM Operator can only be managed through the Supervisor cluster API (Kubernetes API). In this regard, the VM cannot be any longer managed directly from the UI or other management tools. Looking at the picture below you will notice that the VM is marked in UI as "Developer Managed" and that there are no actions that can be taken on the VM



If you are this far, then well done, you've just provisioned you first VM using Kubernetes API. Now put those manifests in a git repo, install and configure a CD tool (such as ArgoCD) to monitor the repo and apply the manifests on the Supervisor cluster and you don't even need to touch kubectl command line or vCenter Server :-)
